Features
Mechanical weight adjustment in 5 steps 50-120kg (110-265lb)
50mm vertical suspension stroke
Fore and aft adjustment up to 210mm (8′) in 15mm increments
Backrest angle adjustment 10 degrees in 3 increments
Seat tilt adjustment (2 positions)
Suspension cover
Options

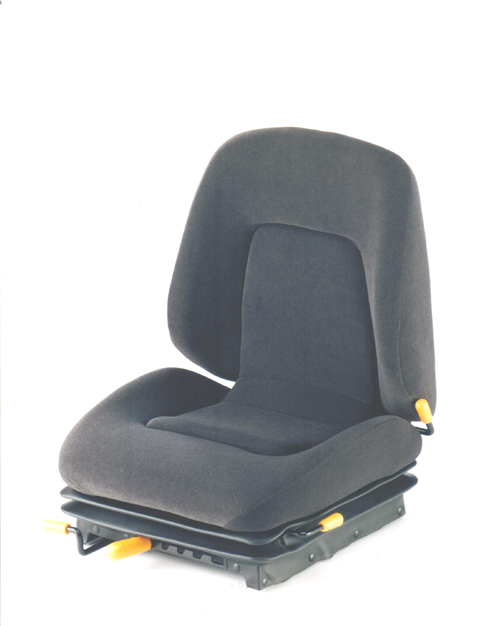

Range of fabric or PVC trims
Occupant sensor (in centre cushion)
Additional centre cushion in PVC or fabric with heater – 48v, 24v or 12v
Seat Belt (anchorage to ISO 3776 Ag)
Hip guards
Alternative fore and aft adjustment lateral centres are available to meet ISO 6683
Armrests
Seat Sensor Switch
TECHNICAL INFORMATION
SIP to ISO 5353
Dimensions at mid suspension stroke, and at mid sliderail adjustment
Indicative dimensions
ADDITIONAL INFORMATION
These models are just part of the extensive 200 series range. The 21 mechanical suspension can be used with a wide variety of high back/low back seat uppers and pans.
