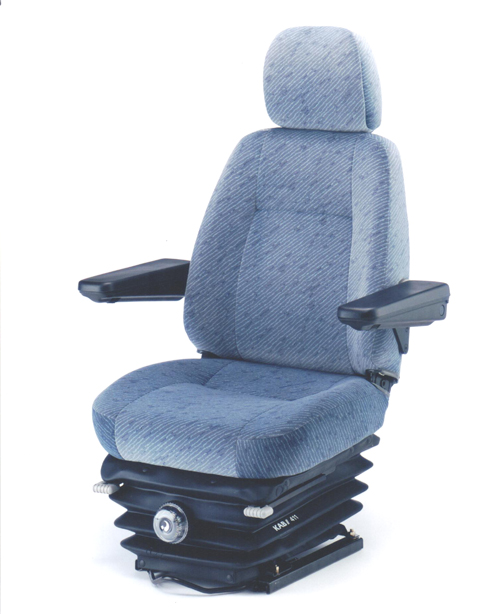

Mechanical suspension seating for the Truck and Construction sector
Features
Mechanical suspension
100mm vertical suspension stroke(4′)
Manual adjustment for driver, weight from 50 – 120kg (110-265lb)
60mm seat height and tilt adjustment (2 1/2′)
Backrest angle adjustment
Fore and aft adjustment – 160mm (6 and 1/4 ‘)
Suspension cover
Options
75mm vertical suspension stroke
5 position lumbar support
Adjustable armrests (50/70/80/100mm widths)
Cushion heaters – 12v or 24v
Fore and aft isolator
Adjustable headrest
Range of high quality fabric or PVC trims
Narrow cushion with 430 or 460mm width
Right/Left/Front controls
Suspension lockout
Document pouch
100mm height and tilt adjustment
Vibration performance 7096
Seat belt to ISO 6683, SAE J386 and ISO 3776 (anchorage strength 15Kn)
Seat belt widths 50mm (2′) & 75mm (3’)
TECHNICAL INFORMATION
SIP to ISO 5353

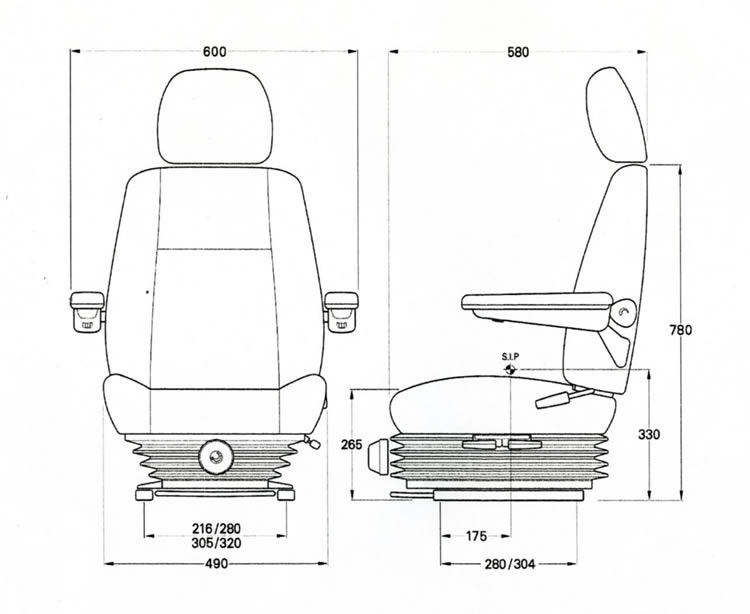

Dimensions at mid suspension stroke, mid height adjustment and at sliderail adjustment
Inidicative dimnesions
ADDITIONAL INFORMATION
This model is just part of the 400 series. Other suspension and static seats are also available.
