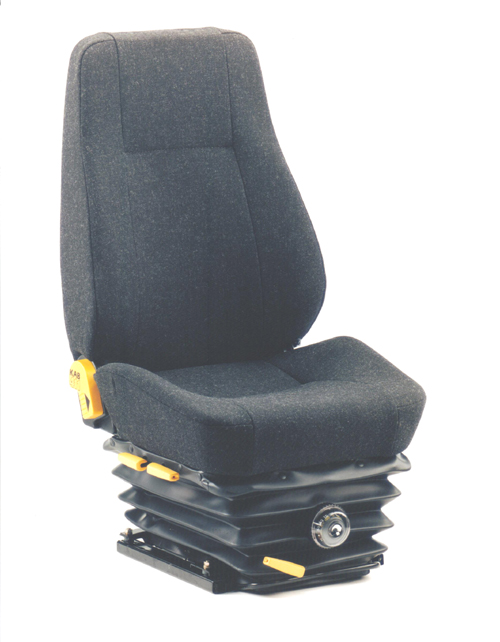

Mechanical suspension seating for the Truck, Bus and Construction sectors
Features
Mechanical suspension
100mm vertical suspension stroke (4′)
Automatic adjustment for driver, weight 50-120kg (110-265lb)
60mm seat height and tilt adjustment
Backrest angle adjustment
Fore and aft adjustment – 160mm (6 1/4′)
Suspension cover
Options
75mm vertical suspension stroke
5 position lumbar support
Adjustable pivoting armrests (50/70/80/100mm widths)
Cushion heaters – 12v or 24v
Seat belt 50mm (2′) and 75mm (3′)
Suspension lockout
Adjustable headrest
Range of high quality fabric and PVC trims
Front/Left/Right controls
100mm height and tilt adjustment
Fore and aft isolator
Vibration performance to ISO 7096
Seat belt to ISO 6683, SAE J386 and ISO 3776 (anchorage strength 15Kn)
TECHNICAL INFORMATION
SIP to ISO 5353
Dimensions at mid suspension stroke, mid height adjustment and at mid sliderail adjustment
Indicative dimensions
ADDITIONAL INFORMATION
This model is just part of the 400 series. Other high back and low back seats are also available.
