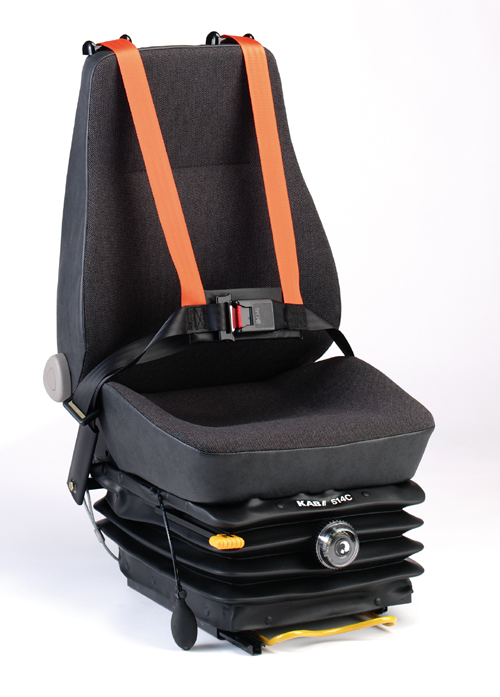

Mechanical suspension seating for the construction and marine sectors
Features
2 spring mechanical suspension
100mm (4′) vertical suspension stroke
60mm height and tilt adjustment
Driver weight adjustment 50 – 120kg (110 – 265lb)
Suspension cover
Air lumbar
Fore and aft adjustment of 180mm (7′)
Backrest angle adjustment
Double locking heavy duty slide rails
Vibration performance to ISO 7096
Integrated full harness seat belt (4 point)
Options
Adjustable armrests (50/70/80/100mm widths)
Adjustable headrest
Cushion heaters
Adjustable damper
Double dampers
Seat sensor switch
Front or side controls available
Range of fabrics and PVC
TECHNICAL INFORMATION
SIP to ISO 5353
Dimensions at mid suspension stroke, middle height adjustment and at mid rail adjustment
Indicative dimensions
ADDITIONAL INFORMATION
This model is just part of the extensive 500 series range. Other high back, low back and narrower seats are also available.
