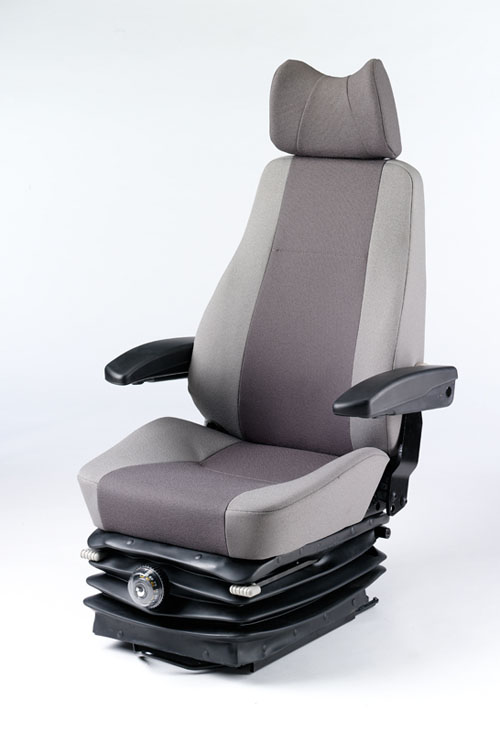

Mechanical suspension seating for the construction, truck and marine sectors
Features
4 spring mechanical suspension
100mm vertical suspension stroke (4′)
60mm height and tilt adjustment (2 1/2′)
Driver weight adjustment 80 – 150kg (175-330lb)
Suspension cover
5 position lumbar support
Fore and aft adjustment of 200mm (8′) in 10mm increments
Backrest angle adjustment
Seat belt to ISO 6683, SAE J386 & ISO 3776 (anchorage strength 15Kn)
Options
Tether belt version to SAE J386, June 1985 (anchorage strength 22Kn)
Seat belt widths 50mm (2′) & 75mm (3′)
Adjustable armrests (50/70/80/100mm widths)
Adjustable headrest
Cushion heaters
Adjustable damper
Double dampers
Seat sensor switch
Turntable 0 degrees – 180 degrees
Front or side controls available
Range of fabrics and PVC
TECHNICAL INFORMATION
SIP to ISO 5353
Dimensions at mid suspension stroke, middle height adjustment and at mid rail adjustment
Indicative dimensions
ADDITIONAL INFORMATION
This model is just part of the extensive 500 series range. Other high back, low back and narrower seats are also available.
