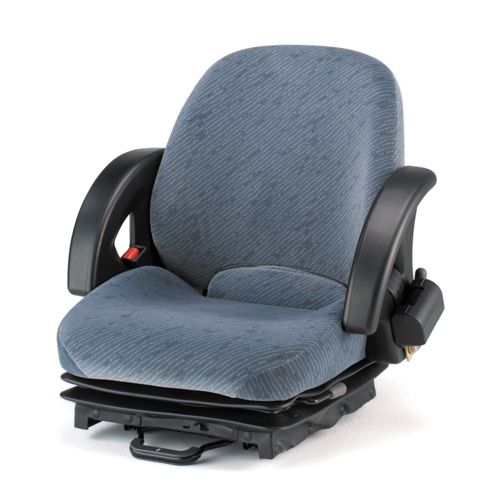

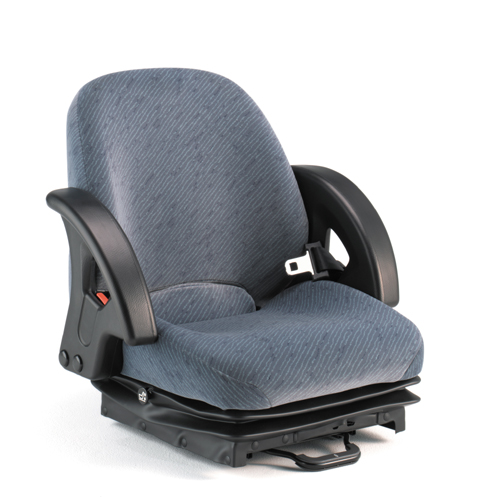

A low profile air seats for use on forklifts and ride-on mower sectors.
Features
Manual air valve with weight adjustment (50-120kgs)
Seat tilt adjustment 10 degrees in 3 increments
Backrest angle adjustment in 15mm increments
210mm Fore and Aft adjustment in 15mm increments
50mm vertical suspension stroke
12 or 24 volt integral compressor
Seat belt (anchorage to ISO 3776)
Options
Seat belt
Hip guards
Armrests (50/70mm wide)
Heater elements
occupant sensor
Water resistant and draining facility (PVC only)
Range of fabric or PVC trims
The Air 25 is a modular suspension which can also be used with a wide variety of high back/low back seat uppers and pans.
