Air suspension seating for the construction, truck and marine sectors
Features
Air suspension (Manual Air Valve)
Air suspension with 12v or 24v integral compressors
125mm vertical suspension stroke (5′)
60mm height and tilt adjustment (2 1/2′)
Driver weight adjustment 50 – 150kg (110-330lb)
Suspension cover
5 position lumbar support
Fore and aft adjustment of 200mm (8′) in 10mm increments
Backrest angle adjustment
Vibration performance to ISO 7096
Seat belt to ISO 6683, SAE J386 & ISO 3776 (anchorage strength 15Kn)
Options
Tether belt version to SAE J386, June 1985 (anchorage strength 22Kn)
Seat belt widths 50mm (2′) & 75mm (3′)
Adjustable armrests (50/70/80/100mm widths)
Adjustable headrest
Cushion heaters
Adjustable dampers
Double dampers
Seat sensor switch
Turntable 0 degrees – 180 degrees
Front or side controls available
Range of fabrics and PVC
The KAB Air 554 with tethers meets FMVSS 207/210 tests applicable for heavy trucks in North America. It also complies with M2, M3 and N2, N3 for Europe.

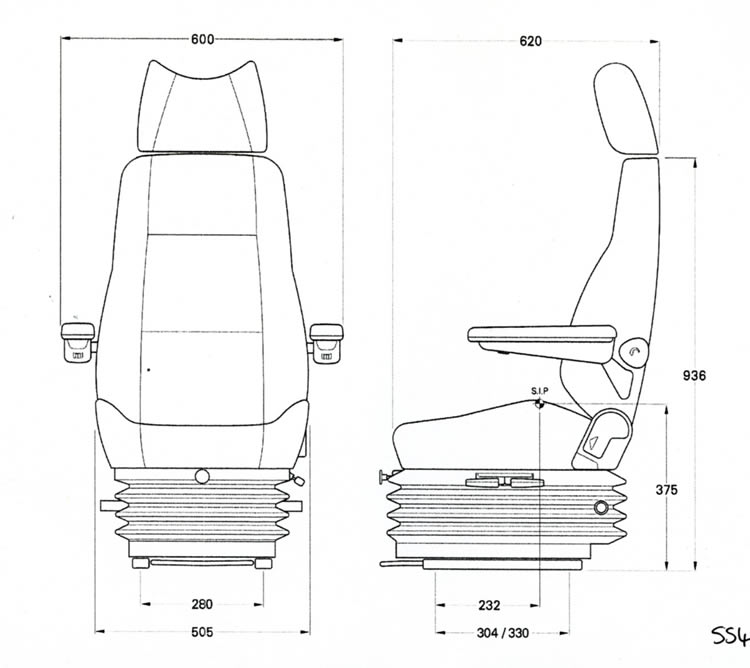

TECHNICAL DATA
SIP to ISO 5353
Dimensions at mid suspension stroke, middle height adjustment and at mid rail adjustment
Indicative dimensions
ADDITIONAL INFORMATION
This model is just part of the extensive 500 series range. Other high back, low back and narrower seats are also available.
