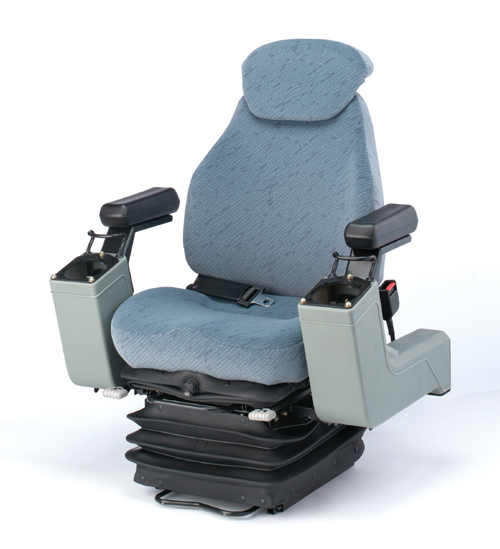

Air suspension seat with pods for Excavators and other Construction machines using Joystick vehicle controls
Features
Air suspension (Manual Air Valve)
Air suspension with 12v or 24v integral compressors
125mm vertical suspension stroke (5′)
60mm height and tilt adjustment (2 1/2′)
Driver weight adjustment 50 – 150kg (110-330lb)
Suspension cover
5 position lumbar support
Backrest angle adjustment
Vibration performance to ISO 7096
Seat belt to ISO 6683, SAE J386 & ISO 3776 (anchorage strength 15Kn)
Options
Pods to take customer joystick controls
Adjustable armrests
Extending Backrest
Front mounted controls
Trimmed in Breeze fabric
TECHNICAL DATA
SIP to ISO 5353
Dimensions at mid suspension stroke, middle height adjustment and at mid rail adjustment
Indicative dimensions
ADDITIONAL INFORMATION
This model is just part of the extensive 500 series range. Other high back, low back and narrower seats are also available.
For line drawings click on ‘Leaflets’and go to page 4.
