Air suspension seating for the truck and bus sectors

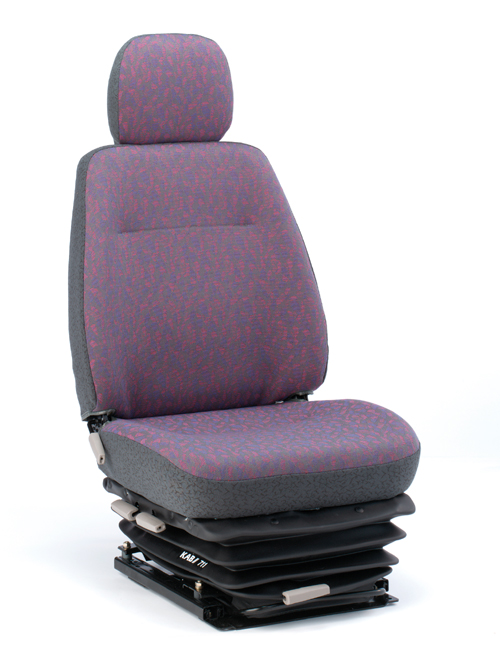

Part Number 160370 RH in Lotus Sapphire (shown)
Features
Automatic air suspension
100mm vertical suspension stroke (4′)
60mm height and tilt adjustment (2 1/2′)
Automatic driver weight adjustment 50-120kgs (110-265lbs)
Suspension cover
Fore and aft adjustment of 160mm (6 1/4′)
Backrest angle adjustment
Options
75mm vertical suspension stroke
Left/front/right controls
Adjustable armrests 50/70/80/100mm widths
Seat belt widths 50/75mm (2/3′)
Fore and aft isolator
Cushion heaters – 12v or 24v
Narrow cushions with 430 or 460mm width
12V or 24V integral compressor
Rapid air dump valve
Document pouch
Range of fabrics or PVC
100mm height and tilt adjustment (4′)
50mm vertical suspension stroke (711LP) (2′)
Suspension lockout
5 position lumbar support
Headrest adjustable for height and tilt
Vibration performance 7096
Seat belt to ISO 6683, SAE J386 and ISO 3776 (anchorage strength 15Kn)
TECHNICAL INFORMATION
SIP to ISO 5353
Dimensions at mid suspension stroke, mid height adjustment and at sliderail adjustment
Inidicative dimensions
ADDITIONAL INFORMATION
This model is just part of the 700 series. Other suspension and static seats are also available.
