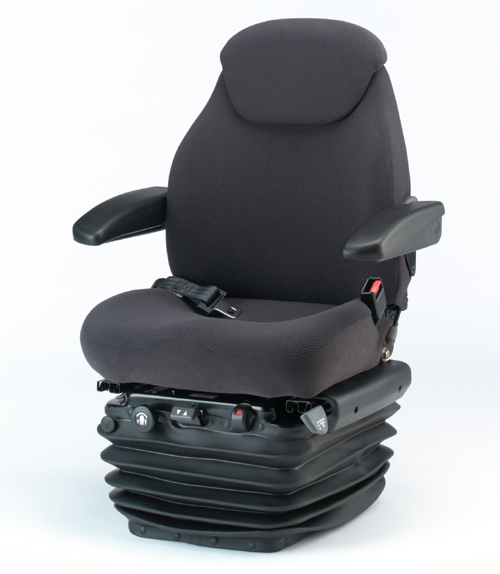

Part number 183784 shown
An air seat for the agricultural and construction sectors.
Features
Air suspension with 12V integral compressor
175mm vertical suspension stroke
Height adjustment 70mm
75mm integral height adjustment
Driver weight adjustment 50-120kgs(110-265lbs)
Ride indicator
Suspension cover
5 position lumbar support
Backrest angle adjustment
Options
Air suspension with 24V integral compressor
Fore and aft slide-rail adjustment of 160mm in 10mm steps
Horizontal isolator with damper includes fore and aft adjustment of 150mm
Seat belt to ISO 6683, SAE J386 and ISO 3776
Seat belt widths 50mm(2′) and 75mm(3′)
Adjustable armrest (50/70/80/100mm)
Backrest extension
Cushion heaters
Turntable
Swivel 0-10-2- degrees left or right
Document pouch
Seat sensor switch
Variable up-stop
Range of fabrics and PVC
Double dampers
Adjustable damper (3 positions)
This model is just part of the extensive 800 series range. Other high back, low back and narrower seats are also available.
